After self destruct, can I re-use the hardware, with creating new keys, or should I throw it to the bin and buy new one ?
1 Like
@Nunux13
With Zymkey4, when set in production mode (tab cut) and self-destruct, the key slots are destroyed and not re-usable.
I have not used this forum before however I do have a question.
Given, after the tab is cut (in production mode and it is set to self destruct) (the perimeter detect is then armed) in order to recognize a close+open circuit.
And if during assembly the circuit momentarily closes and opens a number of times over 10 seconds or so will the zymkey self destruct? How much margin if time is there?
Thanks
@Dave, after you have cut the tab (and self destruct is set) you will have only ONE opportunity to close the circuit. If you subsequently open the circuit, the keys are destroyed. The circuit is checked nominally every second.
Thank You
I am working with a company wanting to use this feature. We are working on the enclosure and final assembly of the unit at this time.
Hi,
How do I compile this using gcc. I do not know what library to include.
Perimeter detect does already work with battery backup,
Is it necessary to configure the device in any way for this to happen? I’m currently testing the Perimeter detect feature and the system doesn’t seem to detect any event if its not powered by the Pi. At least the information returned by zymkey.module.Zymkey().get_perimeter_detect_info() doesn’t change (returns [0L, 0L] even if I breach both channels when the system is powered down).
The Perimeter detect feature works perfectly when the pi is powered (even on halt). All functions seem to work fine. I’m cleaning the detect info (clear_perimeter_detect_info()) before turning down pi’s power and breaching the perimeter.
Is there any step I’m missing or any other way I could get this information?
Thanks by advance.
Sorry to ask the obvious question - but do you have a battery inserted into the Zymkey. And if yes, do you have a way to measure the voltage on it.
That’s ok. Thank you for the quick response.
Yes, the battery ia inserted correctly. Unfortunatly I won’t be able to measure its voltage or test again within a week. My main concern was the need of different configurations. I’ll try using a different battery cell and will post here the voltage value when I get the chance to acquire it.
Thanks!
Im running this code above with
gcc -o Test Test.c -lzk_app_utils -lpthread -I /usr/include/zymkey
I’ve tied all the Perimeter Lines together to make sure there are no breaks.
I’m get
Tamper Detect Input 1 = 1574491337
Tamper Detect Input 2 = 1574491337
Tamper Detect Input 1 = 1574491426
Tamper Detect Input 2 = 1574491426
Tamper Detect Input 1 = 1574491427
Tamper Detect Input 2 = 1574491427
Not sure why there is an event triggered since all the perimeter lines are closed.
Hi
I need some help with the Test I ran above… It is not detecting properly.
Here are my results:
Im running this code above with
gcc -o Test Test.c -lzk_app_utils -lpthread -I /usr/include/zymkey
I’ve tied all the Perimeter Lines together to make sure there are no breaks.
I’m get
Tamper Detect Input 1 = 1574491337
Tamper Detect Input 2 = 1574491337
Tamper Detect Input 1 = 1574491426
Tamper Detect Input 2 = 1574491426
Tamper Detect Input 1 = 1574491427
Tamper Detect Input 2 = 1574491427
Not sure why there is an event triggered since all the perimeter lines are closed.
And the code:
#include <stdlib.h>
#include <stdio.h>
#include <zymkey/zk_app_utils.h>
int main(int argc, char* argv[])
{
int num_timestamps = 0;
uint32_t *tab_event;
zkCTX ctx;
if(zkOpen(&ctx) <0)
{
printf("Unable to setup RTC module\n");
return 0;
}
zkSetPerimeterEventAction(ctx, 0, ZK_PERIMETER_EVENT_ACTION_NOTIFY);
zkSetPerimeterEventAction(ctx, 1, ZK_PERIMETER_EVENT_ACTION_NOTIFY);
while(1)
{
int res = zkWaitForPerimeterEvent(ctx, 1000);
if (!res)
{
zkGetPerimeterDetectInfo(ctx, &tab_event, &num_timestamps);
int ii;
for (ii = 0; ii < 2; ii++)
{
if (tab_event[ii])
{
printf("Tamper Detect Input %d = %ld\n", ii + 1, tab_event[ii]);
}
}
zkLEDFlash(ctx, 500, 500, 4);
zkClearPerimeterDetectEvents(ctx);
}
}
}
@cjh39 Can you please clarify what you mean by your statement below. Thx
I meant that the inner and outer perimeter lines
Are in a loop and should not cause a perimeter event
Sorry to be pedantic, but we have seen all sorts of odd wiring. Please confirm you have connected as follows;
P1A is connected to P1B
P2A is connected to P2B
P1(AorB) is NOT connected to any P2(AorB)
Thanks
Yes that’s correct I have two loops with p1 not connected to anything
At the start of your post you state
and then you state
These appear contradictory. Can you share a hand sketch of what you have wired to what. Thx
Hi,

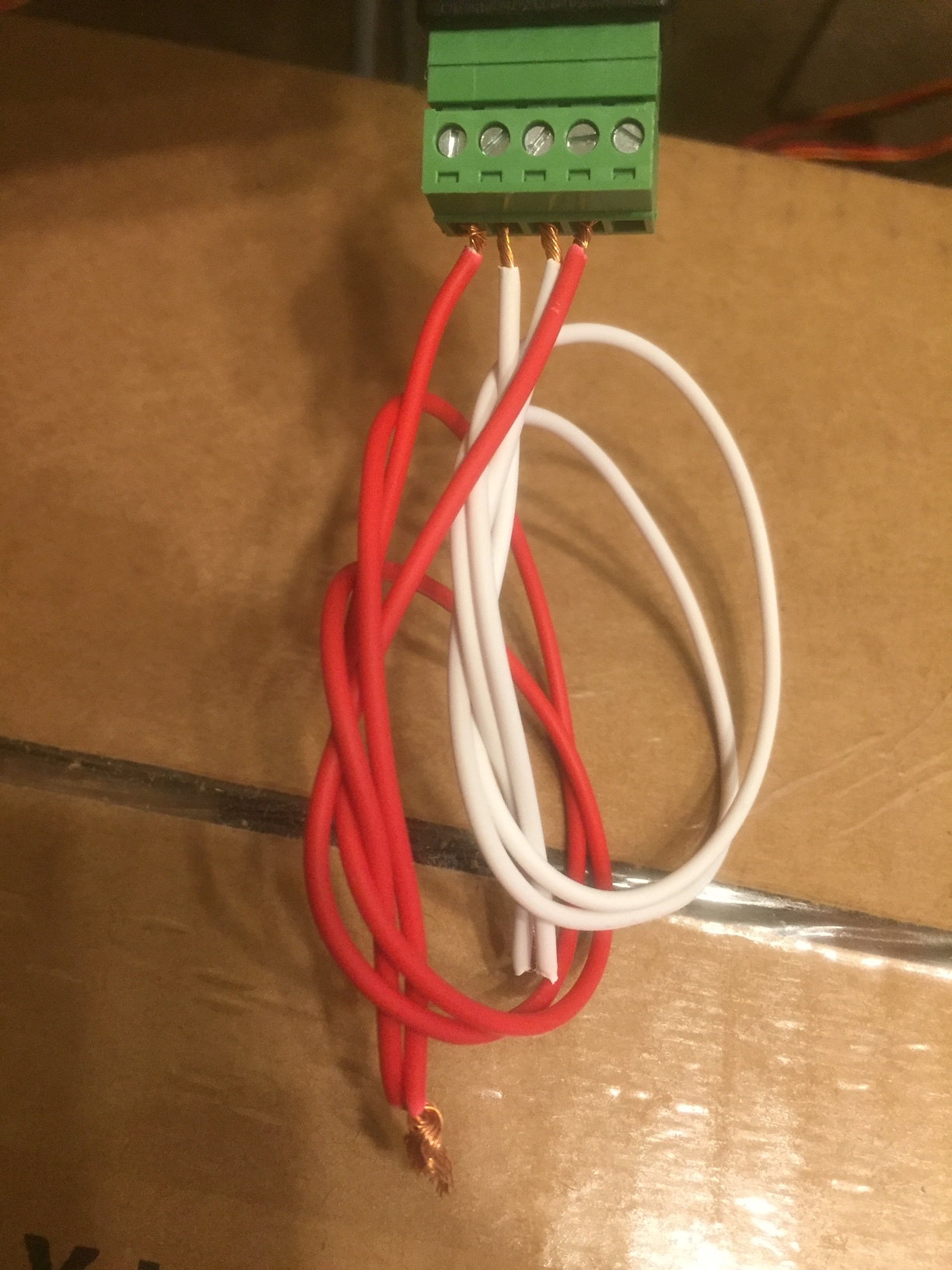

Here is the picture of the 2 loops.
The cable I’m using is a 5 pin
https://www.amazon.com/gp/product/B07PPXMTLL/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1
The cable you are using does not break out the id pin of the connector. It breaks out the cable shield instead.
This means that you are connecting shield to “D+” (pin 3 on usb connector, Perim2 pullup) and “+” (pin 1 on usb connector, no connection to zymkey) to “D-” (pin 2 on usb connector, Perim1 pullup). This explains why you are seeing the broken circuit.
Since your breakout cable does not break the id pin out, the only perimeter detect circuit you can actually get working with this cable is Perim1: connect lug 1 (“-”, pin 5 on usb connector) to lug 3 (“D-”, pin 2 on usb connector).
Hi Scott,
Thanks for the help. I ordered the new cable and it seems to work.
The test program gets a segmentation fault after a couple seconds.
Is it possible to fix this ?
#include <stdlib.h>
#include <stdio.h>
#include <zymkey/zk_app_utils.h>
int main(int argc, char* argv[])
{
int num_timestamps = 0;
uint32_t *tab_event;
zkCTX ctx;
if(zkOpen(&ctx) <0)
{
printf("Unable to setup RTC module\n");
return 0;
}
zkSetPerimeterEventAction(ctx, 0, ZK_PERIMETER_EVENT_ACTION_NOTIFY);
zkSetPerimeterEventAction(ctx, 1, ZK_PERIMETER_EVENT_ACTION_NOTIFY);
while(1)
{
int res = zkWaitForPerimeterEvent(ctx, 100000);
if (!res)
{
zkGetPerimeterDetectInfo(ctx, &tab_event, &num_timestamps);
int ii;
for (ii = 0; ii < 2; ii++)
{
if (tab_event[ii])
{
printf("Tamper Detect Input %d = %ld\n", ii + 1, tab_event[ii]);
}
}
zkLEDFlash(ctx, 500, 500, 4);
zkClearPerimeterDetectEvents(ctx);
}
}
}
hi ,
i still dont cut the lock. still in development mode. i set the event as notify. but i dont understand the value of temper detect input? my value when p1 and p2 connected is between 800-900.
and when i disconnect p2, the value not change. how can i detect when the wire is disconnected?
saufy
